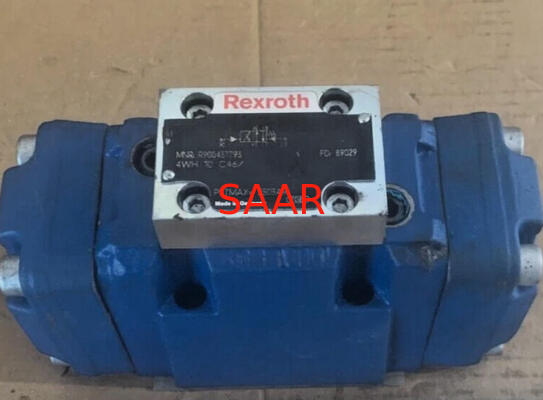

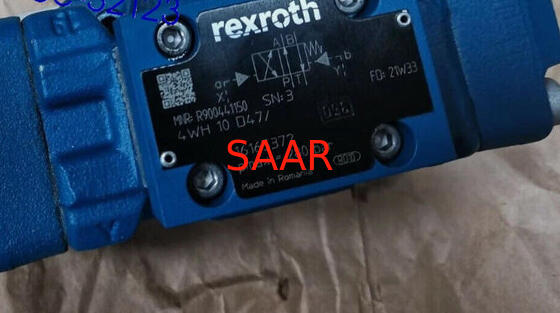

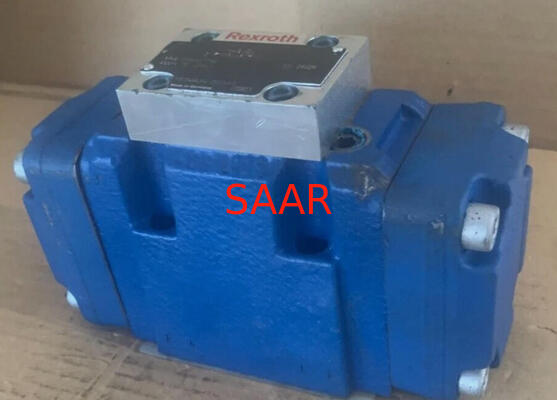

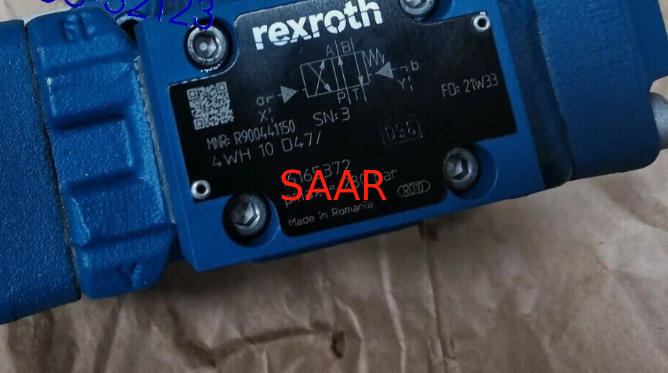

Name: R900441150 4WH10D47 4WH10D4X Directional Spool Valves, Pilot Operated, With Hydraulic 4WH
Brand: Saar HK Electronic Limited
SKU: R900441150 4WH10D47 4WH10D4X
Price: 950.00 USD
Availability: InStock

منزل المنتجات ريكسروث صمام هيدروليّ

R900441150 4WH10D47 4WH10D4X Directional Spool Valves, Pilot Operated, With Hydraulic 4WH

تفاصيل المنتج:

مكان المنشأ:	ألمانيا
اسم العلامة التجارية:	Rexroth
رقم الموديل:	R900441150 4WH10D47 4WH10D4X

شروط الدفع والشحن:

الحد الأدنى لكمية:	1
الأسعار:	On request
تفاصيل التغليف:	صندوق ورقي قياسي
وقت التسليم:	7-10 أيام
شروط الدفع:	/ تي تي، ويسترن يونيون
القدرة على العرض:	100pcs في الشهر

اتصل

مفصلة وصف المنتج

mnr:

R900441150

رقم الموديل:

4WH10D47 4WH10D4X

إبراز:

Rexroth directional spool valves,Pilot operated hydraulic valves,4WH10D47 spool valves

Pilot operated hydraulic valves

4WH10D47 spool valves

Directional spool valves, pilot operated, with hydraulic 4WH

Size 10 … 32
Component series 4X, 7X, 6X
Maximum operating pressure 350 bar
Maximum flow 1100 l/min

Features

4/3-, 4/2- or 3/2-way version
Types of actuation (internal or external pilot control):
– Electro-hydraulic (type WEH)
– Hydraulic (type WH)
For subplate mounting
Porting pattern according to ISO 4401
Spring or pressure centering, spring end position or hydraulic end position
Wet-pin DC or AC solenoids, optional
Electric connection as single or central connection
Optional versions:
- Manual override
- Switching time adjustment
- Preload valve in channel P of the main valve
- Stroke setting and/or spool position monitoring

Type Code:

01	Up to 280 bar	no code
01	Up to 350 bar	H-
Main ports
02	3-way version	3
02	4-way version	4
Type of actuation
03	Hydraulic	WH
03	Electro-hydraulic	WEH
Size
04	NG10	10
	NG16	16
	NG25 (version "W.H 22")	22
	NG25 (version "W.H 25")	25
	Size 32	32
Spool return in the main valve
05	By means of springs	no code
05	Hydraulic ¹⁾	H
06	Symbols; for the possible version, see "Symbols/Circuit diagrams"
Component series
07	Component series 40 … 49 (40 … 49: unchanged installation and connection dimension) – NG10	4X
	Component series 60 … 69 (60 … 69: unchanged installation and connection dimension) – NG25 ("W.H 25") and NG32	6X
	Component series 70 … 79 (70 … 79: unchanged installation and connection dimension) – NG16 (from series 72) andNG25 ("W.H 22")	7X
Control spool return in the pilot control valve with 2 spool positions and 2 solenoids (only possible with symbols A, B, C, D, K, Z and hydraulic control spool return in the main valve)
08	With spring return	no code
	Without spring return	O
	Without spring return with detent ²⁾	OF
Pilot control valve 2)
09	High-power valve (data sheet 23178)	6E
Electrical voltages ²⁾
10	Direct voltage 24 V	G24
10	Alternating voltage 230 V, 50/60 Hz	W230
Manual override
11	Without manual override	no code
	With manual override	N
	With concealed manual override	N9
Corrosion resistance (outside)
12	None (valve housing primed)	no code
12	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3
Pilot oil flow ³⁾
13	External pilot oil supply, external pilot oil return ⁴⁾	no code
	Internal pilot oil supply, external pilot oil return ^{4; 5)}	E
	Pilot oil supply internal, pilot oil return internal ⁵⁾	ET
	External pilot oil supply, internal pilot oil return ⁴⁾	T
Switching time adjustment
14	Without switching time adjustment	no code
	Switching time adjustment as supply control	S
	Switching time adjustment as discharge control	S2
Electrical connection ²⁾
15	Individual connection
15	Without mating connector, connector according to DIN EN 175301-803	K4⁶⁾
Spool position monitoring
16	Without position switch	no code
	Monitored spool position "a"	QMAG24
	Monitored spool position "b"	QMBG24
	Monitored spool position "a" and "b"	QMABG24
	Monitored rest position	QM0G24
Stroke setting
17	Stroke setting on valve side A and B	10
	Stroke setting on valve side A	11
	Stroke setting on valve side B	12
Throttle insert ²⁾
18	Without throttle insert	no code
	Throttle Ø 0.8 mm	B08
	Throttle Ø 1.0 mm	B10
	Throttle Ø 1.2 mm	B12
	Throttle Ø 1.5 mm	B15
	Throttle Ø 2.0 mm	B20
	Throttle Ø 2.5 mm	B25
preload valve (not for NG10) ²⁾
19	Without pre-decompression	no code
19	With preload valve	P4,5
20	Without pressure reducing valve	no code
20	With pressure reducing valve	D3⁷⁾
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
21	NBR seals	no code
21	FKM seals	V
22	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WH10 Series Directional Spool Valves

R900738780	H-4WH10C4X/S2
R900521539	H-4WH10D4X//V
R901077671	H-4WH10E4X//ZV
R901232464	H-4WH10E4X/S2
R900575340	H-4WH10G4X//V
R901077679	H-4WH10G4X//ZV
R900534847	H-4WH10H4X/
R901077670	H-4WH10H4X//ZV
R900599089	H-4WH10HC4X//V
R900941397	H-4WH10HD4X/
R901077677	H-4WH10J4X//ZV
R900566847	H-4WH10M4X/
R901220320	H-4WH10R4X//V
R901152932	H-4WH10R4X//ZV
R900907246	H-4WH10T4X/
R901037628	H-4WH10T4X//V
R901425598	H-4WH10W4X//ZV
R900539589	H-4WH10Y4X//V
R901077680	H-4WH10Y4X//ZV
R901096134	H-4WH10Z4X//V
R900246899	H-4WH10C4X/
R900528376	H-4WH10D4X/
R900549770	H-4WH10E49-4X//V
R900512094	H-4WH10E4X/
R901578704	H-4WH10F4X/
R900534845	H-4WH10G4X/
R900534846	H-4WH10J4X/
R901607433	H-4WH10J4X//10
R901601335	H-4WH10J4X=
R901351939	H-4WH10K4X/
R901578705	H-4WH10L4X/
R901578670	H-4WH10Q4X/
R901125325	H-4WH10R4X/
R900508622	H-4WH10U4X/
R900513847	H-4WH10Y4X/
R900568415	4WH10C4X/S
R901338201	4WH10C4X/S
R901133566	4WH10C4X/S2
R900564718	4WH10C4X/S2/V
R900581012	4WH10D30-4X/
R900427851	4WH10D4X//V
R900592347	4WH10D4X/S
R900471150	4WH10D4X/S2
R900910498	4WH10E4X//10
R900246400	4WH10E4X//V
R900248282	4WH10E4X/ET/B10V
R901402807	4WH10E4X/J
R900534006	4WH10E4X/S2
R900518247	4WH10F4X/
R900582265	4WH10G4X/S2
R900474423	4WH10H4X/
R900567688	4WH10HC4X/
R901193461	4WH10HC4X//10
R900428182	4WH10HD4X/
R900744309	4WH10HD4X//V
R900510249	4WH10HZ4X/
R900249126	4WH10J2-4X/
R900777126	4WH10J4X//10
R900960590	4WH10J4X//V
R900510213	4WH10J4X/J
R900562494	4WH10J4X/S2
R900582530	4WH10L4X/
R900562602	4WH10M4X/
R900538177	4WH10Q4X/
R900529533	4WH10Q4X//10
R900440768	4WH10R4X/
R900529175	4WH10R4X/S2
R900529242	4WH10T4X/
R901127650	4WH10T4X/
R900586615	4WH10T4X/S2
R900736797	4WH10U4X/
R900472695	4WH10V4X/
R900462239	4WH10W4X/
R900443486	4WH10Y4X/
R900539355	4WH10Y4X//V
R900598835	4WH10Z4X/
R900522199	4WH10Z4X//V
R900437793	4WH10C4X/
R900441150	4WH10D4X/
R978876914	4WH10D4X//12
R900473466	4WH10D4X/J
R901479336	4WH10D4X/J3
R900444197	4WH10E4X/
R901548162	4WH10E4X/J3
R900441155	4WH10G4X/
R900428004	4WH10J4X/
R901501517	4WH10J4X=
R901438224	4WH10M4X/J
R901430030	4WH10P4X/
